Modifications 3

The hospital advise that I  am allowed to drive after 6 weeks so  assuming I can can in and more importantly out of the car I will able to drive on 1st May .

As i cant kneel for long periods and don't want to impede my healing I have enlisted the help of my son to finish putting the car together .

Yellow wire in the loom ready for dash refit

Dash was straight forward as speedo and rev counter cables were left long enough on purpose

Dash fitted with the rev counter in the right side

Fitted the surround with the Alarm LED  happy with the outcome .

LED fitted and hoping its bright enough

Next its the undertrays which are amazingly fiddly made worse because of all the switches ( Bluetooth ,rev lockout and second map switch ) as well as all the associated wiring.

Forced smile as the undertray just slips in ( not)

Once everything in and found to be working car had to come out the garage to be washed for some strange reason Connor was ok with volunteering for this job !!

No forced smile here then

Modifications 2

 After taking the dash out and the ECU I was unable to find the wire that I need to earth to obtain a second map which was a  plain yellow wire

After a call to Andy and David from Canems it transpires some looms don't have this wire and you've guessed it I haven't .

Now waiting tor David to send me the wire with the pin on it hopefully easy enough job to fit

missing pin and so no wire either

While waiting for the wire installed 2 more switches under the dash

one to turn the indicator beeper off ( just in case i need to ) and one for this elusive wire for the second map

new switch on the right for indicator

new switch on left next to blue tooth speaker  power

Also got a holder for the led cheap enough and looks better  check the current draw of the LED and its 25mA so no big shakes with power drain .

Silicon'ed in waiting to dry

Yellow wire arrive and very easy to fit  so now fitted in the correct pin on the ecu plug

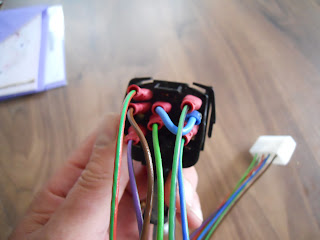

Plug apart

Wire fitted and ready for ecu to go back

At the same time fitted the flashing LED to the steering shroud ready for assembly

Led fitted

Speedo check

 Didn't  think to check the Speedo but a quick call to Andy advised me that i should ( Steve  did say as well but ignored that advice .

Jacked the car up ,easier said that done as no space

ended up making a set of low rise ramps out of some decking wood .

make shift low rise ramps

once car jacked up and on stands into first gear on  tick over  35MPH ! works but maybe a bit fast  .

Easy enough to set by holding the trip button and then powering up goes in to set up menu

currently set at 8000  Andy from GD said its wants to be at 28000  and now runs at 9MPh at tick over which is close enough .

Pain to do but one more job ticked off .

speedo working

undertrays

 Now the dash is in and all the gauges are also in speedo was really fiddly time to final fit the undertrays

I have quite a lot going on with the trays as on the left one i have a aux socket and switch  floor light speaker and a switch for the usb charge point behind the seat all fused from a cable from the battery

a lot going on

Try as i might i couldnt get it to fit and line up ,i knew it fitted as i had already pre drilled the holes in the frame for the self tappers .

After a lot of cursing it transpired that i had fitted the USB switch ( just in the picure on the left ) right in the way of the dash bar .

I moved this and covered the hole with plastic and voila fits .

Fitted note the whoops hole

Reflectors

 Realised that i needed reflectors to pass the IVA and didnt want the expense of buying another 2 standoffs so copied another users blog and made a bracket to support the reflector off the indicator s ,a bit of a fiddle to make but hopefully worth it

found a piece of stainless hanging around

The slot was there on the metal i acquired but will be hidden by the reflector ,once i got the indicator to fit I spaced the refector with a 5mm drill spryed black and fitted .

look better than i thought might even leave them of after IVA



Wiring and undertrays

 Had a bit of time so went for wiring the undertrays, pinched an idea from other blogs and wanted an aux socket but wanted it hidden, Also wanted to be able to charge the battery from this point. Didn't want to overload the wiring so took an extra feed from the battery with an in line fuse and broght it though with all the other wires .

Its quite tight for room but can just get it all in ,the main feed from the batt come to the extra fuse board and then feeds the aux socket sends a fed to the drivers footwell lamp.

I have decided that phone charging is going to be an issue so opted to hide a usb outlet behind the pass seat .

usb twin port behind the pass seat

now all the wiring is in should be able to fianlly fit the dash.

More Fault finding

After the excitement of the start it was time to get   on to the issues found .

I noticed that the fuel gauge reads full and I know there is only 4 gallons in there.

when I took the cables off the sender the gauge went to empty so appears to be a sender problem

When i looked further the sender is reading wrong should be high resistance when empty and low when full but mine is the other way round

empty should be reading high

full should be reading low

One for Andy GD to sort

Next

Ignition warning light ---now lights up but still not charging so strip down and see what going on there

Wipers -- ok changed over the park and now ok but very noisy in operation so might have to bend the tube some more

Washer -- now working bad earth (my fault)

Brake fluid light -- now working Lamp blown

Reverse lock out --ok

Boot lights work with side lights

and big one for me the start button illumination goes out when engine starts

Fault finding

 After a disastrous day yesterday thought i would start at one problem at a time so, started with the Headlights, using GD dash wiring i traced everything out and found that were the stalks plug into the wires have been fitted wrong !!Know that not Andys fault as he sources the wiring out but it took me most of the day to sort it ( and a few very choice words)

similar blue wires in the wrong plugs

Now it all makes a bit more sense and checks out with my meter .

so now time for next power up .

- Side lights --ok

-Dip lights -- ok

Main beam --ok ( and indicator works )

Flash --ok

Gauge back lights --ok

Fog light --ok ( only when head lights on and indicator works

- heater both speeds --ok ( i wired the switch backwards so always working on speed 2  duh)

Reversing light -- ok

indicators lhs plus repeaters   - ok

Indicators rhs plus repeaters   - ok

Hazards   - ok

horn -- soft tone only -- ok ( loud disconnected as in the garage) update bloody hell that loud

Ignition warning light --- NO

Start button lights up -  ok

fuel pump runs then stops   - ok

Wipers -- ok (parking on wrong side )

Washer -- NO

Brake fluid light -- NO

Reverse lock out --ok

Brake lights --ok

So a lot better just a few bits to look at before a start

powering up ( and down again)

 Time to power up

so connected the dash up put all the fuses in and connected the battery no bang or smoke which is a good start .

first check was

heater --only works on one speed

side lights -- all work

head lights - no  no full beam  but flash works

wipers -no on first speed then on second works but head lights come on !!!

no point carrying on so enough for today out with wiring diagram.

Dash Wiring Stalks

 Final part of the wiring quite easy once i had marked cables and photocopied the supplyed drawing to make it bigger for old eyes !

Son in law came round so gave him the job

All done thanks Adam

Decided to alter the wiring slightly as not having intermittent wiper so moed the wiring so

 intermittent is now speed 1 and speed 1 is now speed 2 ,i also had to link speed 2 to speed 1 other wise when i went to speed 2 the wiper would stop .

link wire added

Dash Wiring Stalks

 Final bit on the wiring was the stalks .

GD supply the stalks with a nice SS bar that screws in

Started by cutting off the stalk ,then drilling and threading a hole in line with the stalk

cut

Tapped and ready to fit

The Wiper Stalk was more difficult as it was hollow behind  for this i used epoxy first and the drilled and tapped as normal

Other makes are available !!

Then cam on to the wiring using the tech files from the disc the wire numbers and colours  can be found ,I used the dash wiring diagram to confirm the wires and numbers

The wiring was straightforward as there was a key for numbers and colours

The wiper was slightly more complicated ( or i was being thick )

There was no wire mark for the wash or the horn ,going back to the drawing of the dash i could then work out the 2 missing cables for W and WH ,

I don't intend to have intermittent wipe on my car as hoping the wiper never get used so plan to make intermittent connection (J) speed 1(53)  and Speed1 -speed 2 (53B)  ,i am considering joining speed 1 and 2 together otherwise if i select speed 2 by mistake the wipers will stop .

need to think about that over a beer

Dash wiring (IGN)

 Last couple of jobs before i can go for a power up is the Ignition switch and the steering stalks ,

The ignition switch is the Lucas type ,It threw me at first as i expected the switch to be

 OFF-AUX-IGN-Start  however it isn't mine is AUX -OFF-IGN- Start

there is no wiring diagram in the box and nothing i could find in the web about wiring so after a bit of time arrived at

Contact 1 also being at the top ,

I looked at the cables in the loom and they are 6mm so figured should use the same ,with the GDkit comes the spades and the housing for the plug so that was easy and soldered them for piece of mind however on the switch end that was another issue should have used yellow crimps due to the size of the cable but, as i was presented with double connections came up with another  idea

first i split the cable into 2  then put the insulation back on  , I could then use 2 blue terminals on both of the connections

insulation slides back on (note the heat shrink)

crimped up

Once crimped i the put heat shrink on the join , repeated this for the AUX and IGN

heat shrink applied

Completed

Wiring ish

 I decided that after speaking to other owners  there is a small type of people that have no respect and open door of there cars !! how rude

to combat this i have  installed a very simple alarm the idea being that once switched on (with a key switch)  as soon as the door is opened an alarm will go off . adding to this i also thought that i would install Bluetooth speakers for when i am stopped

I purchased  a motorbike sounder as it is loud enough and draws little  current when activated



sounder behind the dash

i was planning to use the courtesy switches which then reminded me to look for the connection

i found it in one of the multiplugs that connect the dash as there is no dash wire for this i took the wire out and joined it to mine.

courtesy wire joined the other two are light feed and spare



This is work in progress so more to follow  wiring diagram

i also intend to fuse the aux socket separately and run a new wire to it so i can use this as a battery charger if reqd



More wiring (boot)

 The number plate light gets its feed from a connector next to the fuel tank and goes in the boot at the hinge, I thought i could combine the two and place a boot light in the circuit  .

Started by glassing some wood each side of the boot and then a bit a 10mm heating pipe to hide the wires .

one side done ( hard to glass upside down )

Then moved on to the other side ,used p clips to secure the wire up to the light and all done



Bits and Bobs

Bonnet

 Fitting the Bonnet catches next again measured on a recent trip to GD and using the wiper arms as a reference marked the bonnet and made sure both sides were the same before drilling and fitted with self tapping screws ,The bonnet is double skinned and the handles carry the weight of the bonnet so might change to button head bolts yet .

Handles fitted

Moving into the engine bay marked a parallel line from the catch and measured down 25mm and that was the first hole for the catch , then made sure that the catch followed the curve of the body ,fastened with button heads.

drivers side fitted

Moving on to the transmission tunnel needed to fit the gear cover ring again had to be careful not to snag the carpet so went for drilling backwards which seemed to work .

Like button heads better than the usual self tappers

Fuel Tank

Needed to fit the fuel flex pipe as not long away from needing fuel .Had already taken the tank to have a earth stud welded on courtesy of  Mirus Engineering So after socking the pipe in hot water to make it forgiving fitted that together with an earth wire from the filler to the tank .

pipe and wire fitted ( thanks Connor )

Undertrays

There are two undertrays that fit under the dash and i know its probably a complete waste of time but i have decided to fit Bluetooth speakers so needed to cut out for this and the reverse lock out button .

Drivers side cut out and sprayed ( both sides because i sprayed the wrong side first )

Centre tray

After fitting the center tray  could finally fit the ecu  this was not as easy as i first thought as there is not enough room when the dash is fitted to fit the ecu to the panel .I overcame this by only securing the ecu with the front screws and making sure that it was pushed back as far as it would go . now i have enough room .

ECU fitted

The pink wire hanging down needs to connect to the bared white wire above it as that is the fuel pump supply .
